Creating System Images with Windows 10 ProΒΆ

Applies to Sub-Control 10.2

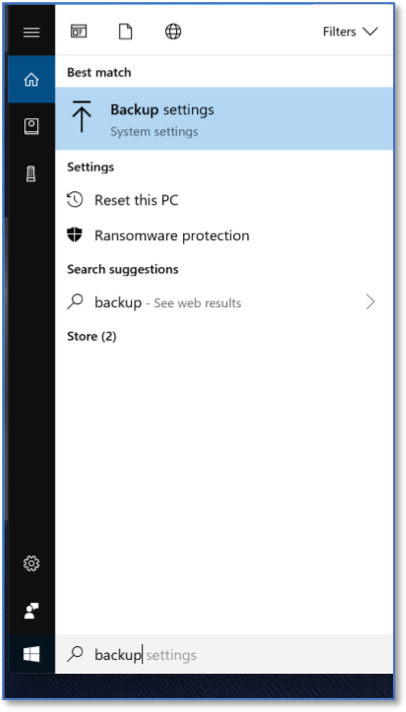

Search for backup within the Windows search bar.

../_images/SearchingForWindowsBackupSettings.png

Searching for Windows Backup Settings

The main backup screen within Windows 10 will be displayed. Select Go to Backup and Restore (Windows 7).

../_images/Windows10BackupSettings.png

Windows 10 Backup Settings

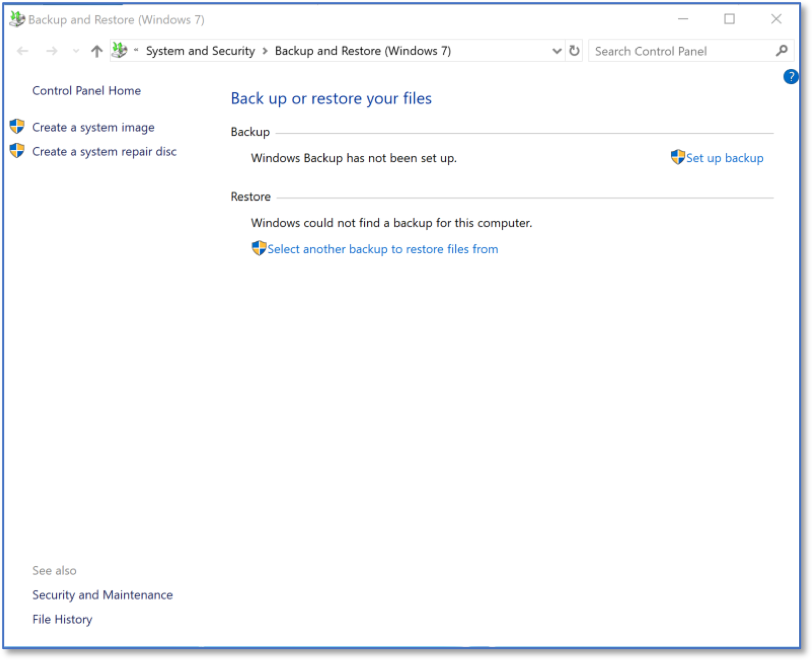

Select Set up backup.

../_images/BackupAndRestoreHomeScreen.png

Backup and Restore Home Screen

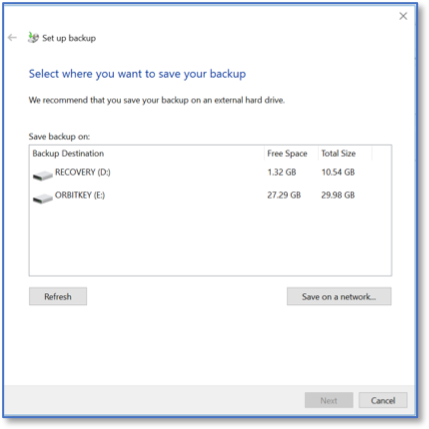

Select the local or network drive where backups should be stored.

../_images/SelectingTheStorageLocationForBackups.png

Selecting the Storage Location for Backups

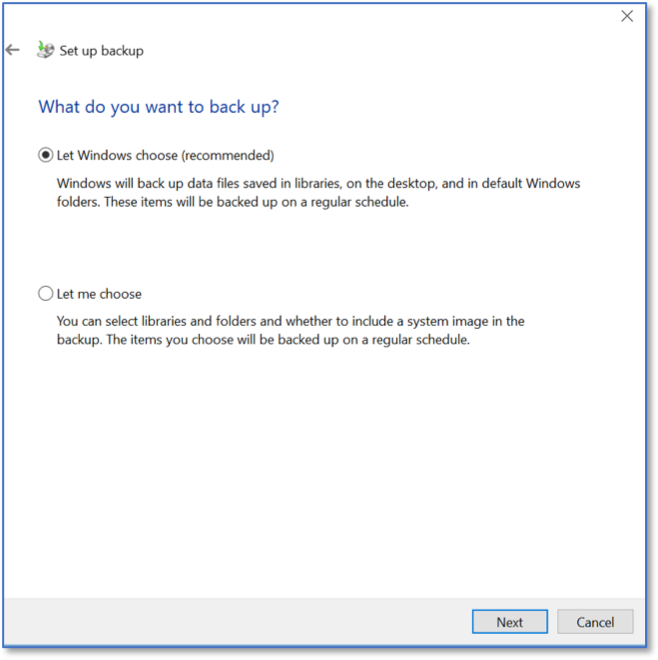

Choose whether Windows will select which files need to be backed up, or if this is a decision that needs to be made on a file by file basis. This example lets Windows select the files to be saved.

../_images/ChoosingTheStorageLocation.png

Choosing the Storage Location

Select which accounts will be backed up. All accounts may be the most prudent option.

../_images/SelectingTheAccountsThatWillBeBackedUp.png

Selecting the Accounts that will be Backedup

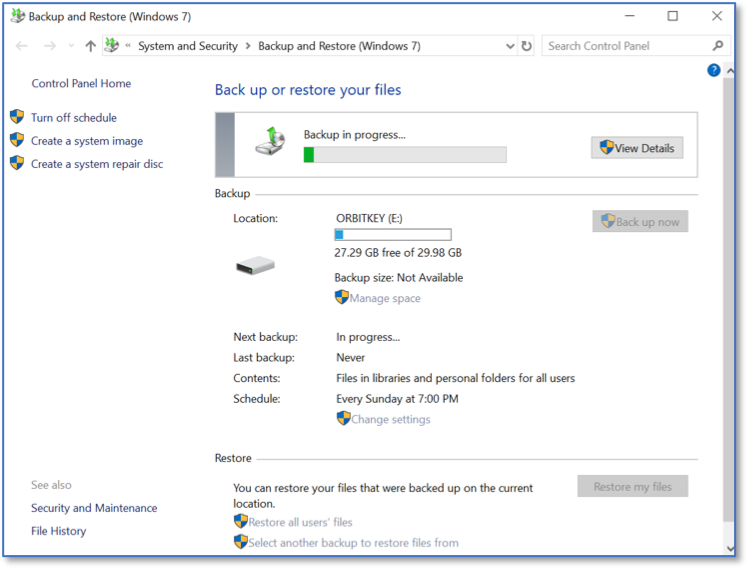

The backup will then begin. This may take a long amount of time to successfully complete.

../_images/SuccessfulBackUpScreen.png

Successful Backup
